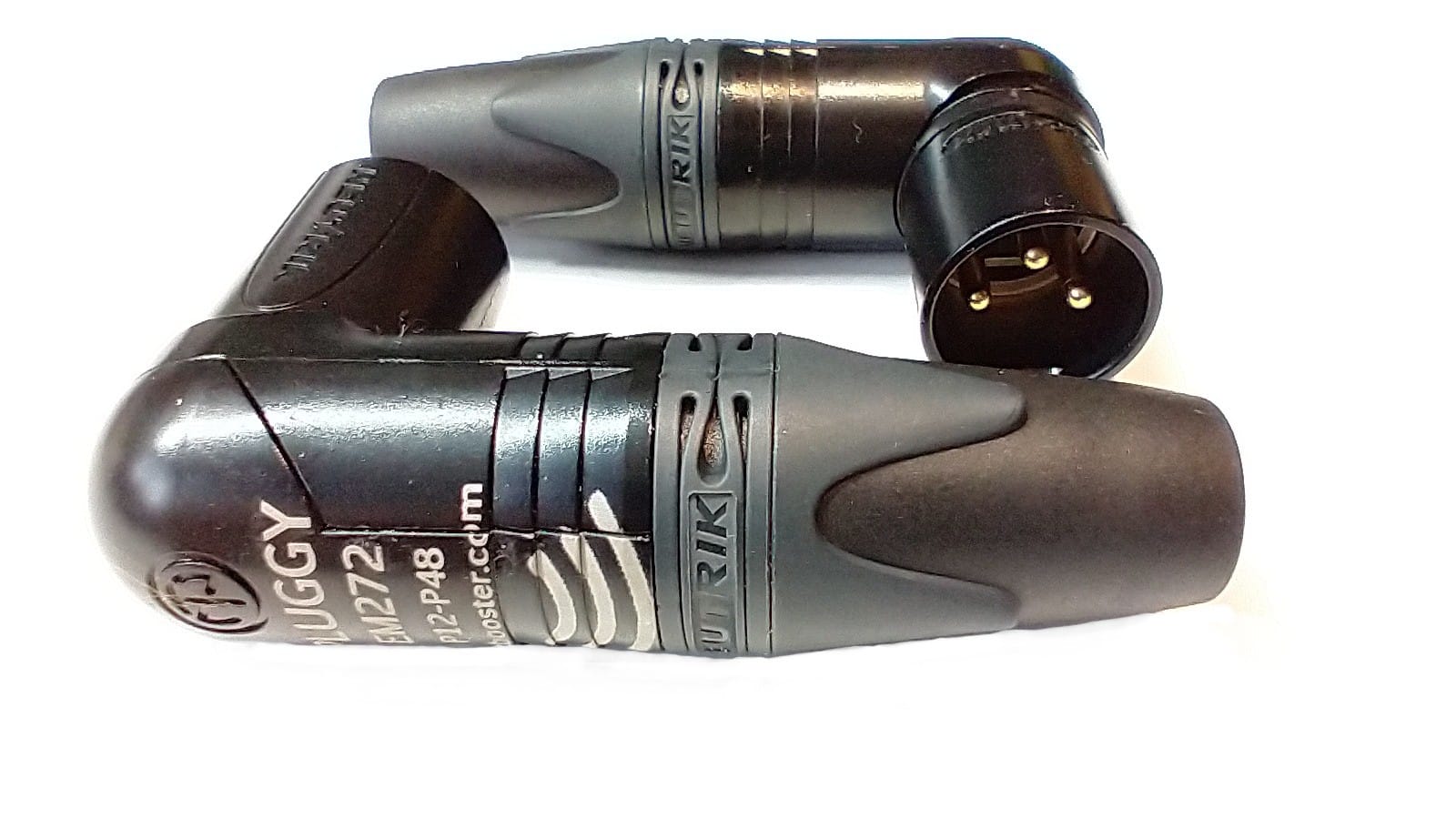

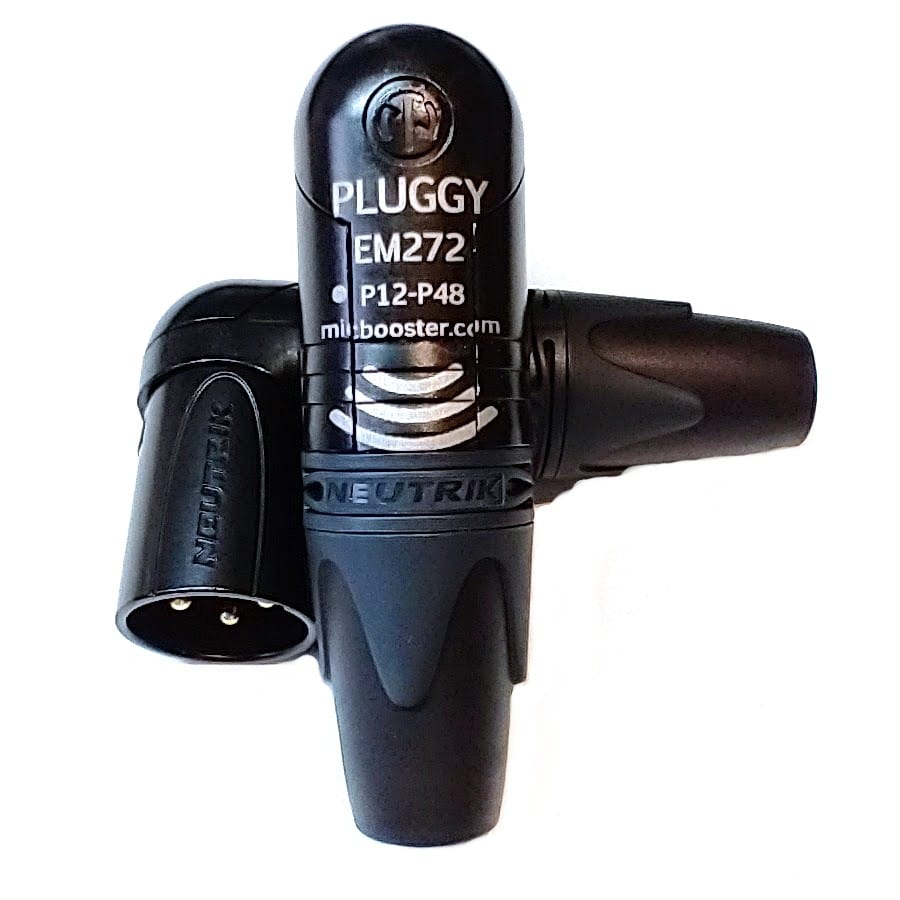

Pair of Right Angle Pluggy XLR EM272Z1 Microphones

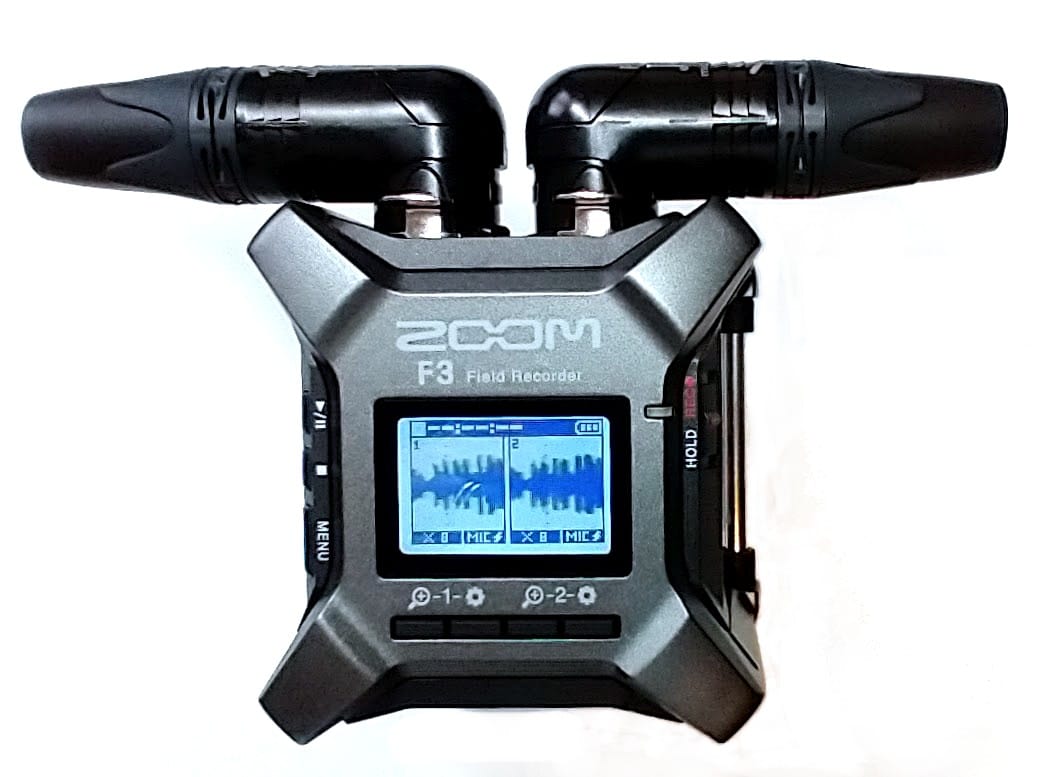

These microphones are a stereo pair, when plugged into a Zoom F3 recorder or similar one points 90 degrees left and one points 90 degrees right.
We have made these mics following customer requests. Please note that the microphone capsules are omni-directional. To get a good stereo recording with omni-directional mics in open air a spacing of 40-50 cm is recommended. We would recommend a Baffled Stereo setup to get the best effect.

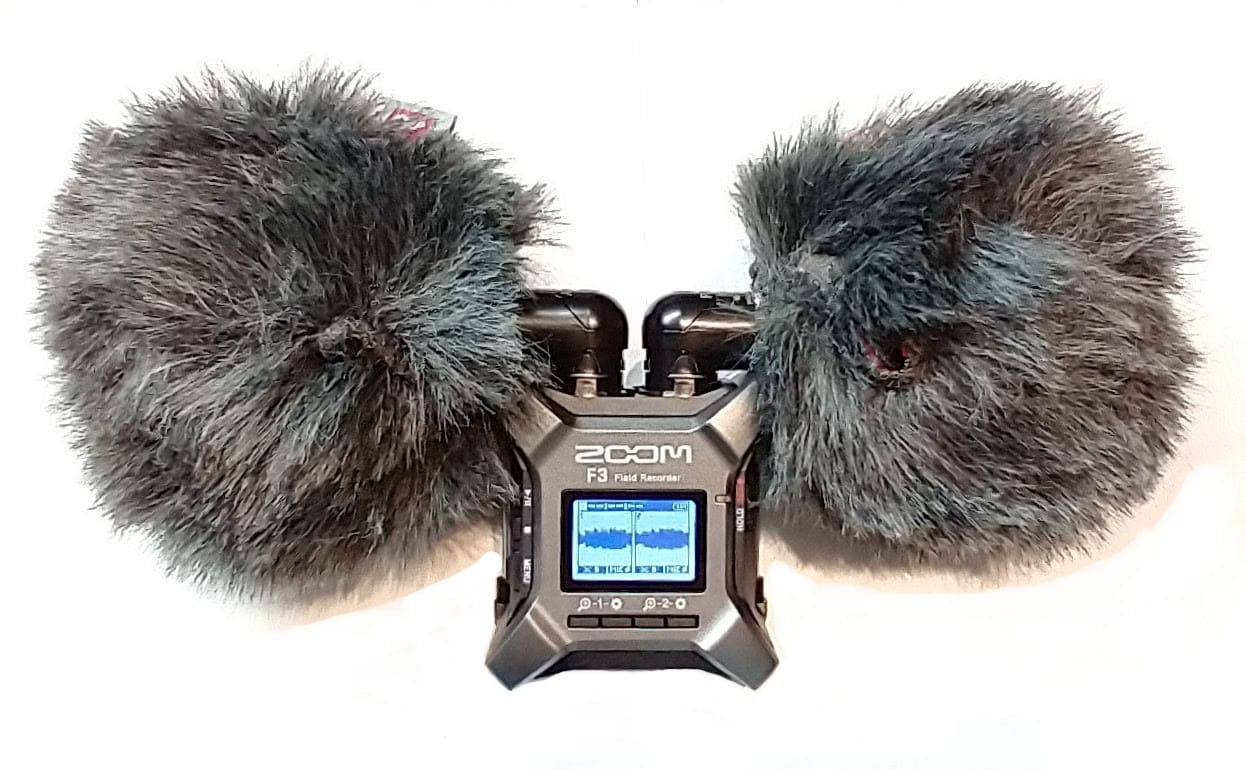

When plugged into a Zoom F3 recorder the capsule spacing is 14 cm. There is a gap between the microphones of 4mm for inserting a baffle if required.

The Pluggy EM272Z1 uses the acclaimed Primo EM272Z1 capsule, made in Japan. This capsule is extremely low noise (typical 14 dBA self noise) and high sensitivity (-28 dB).

Our own unique electronic design provides a regulated voltage to the capsule whether the unit is powered from 12, 24 or 48 volt phantom

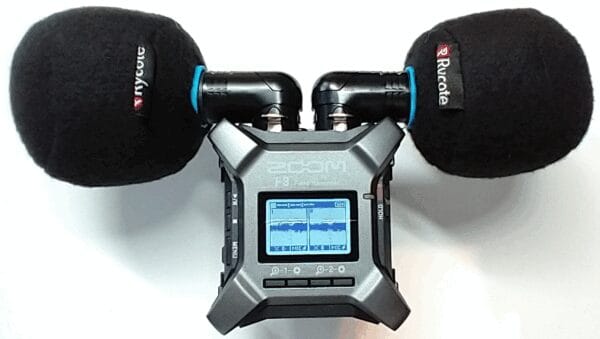

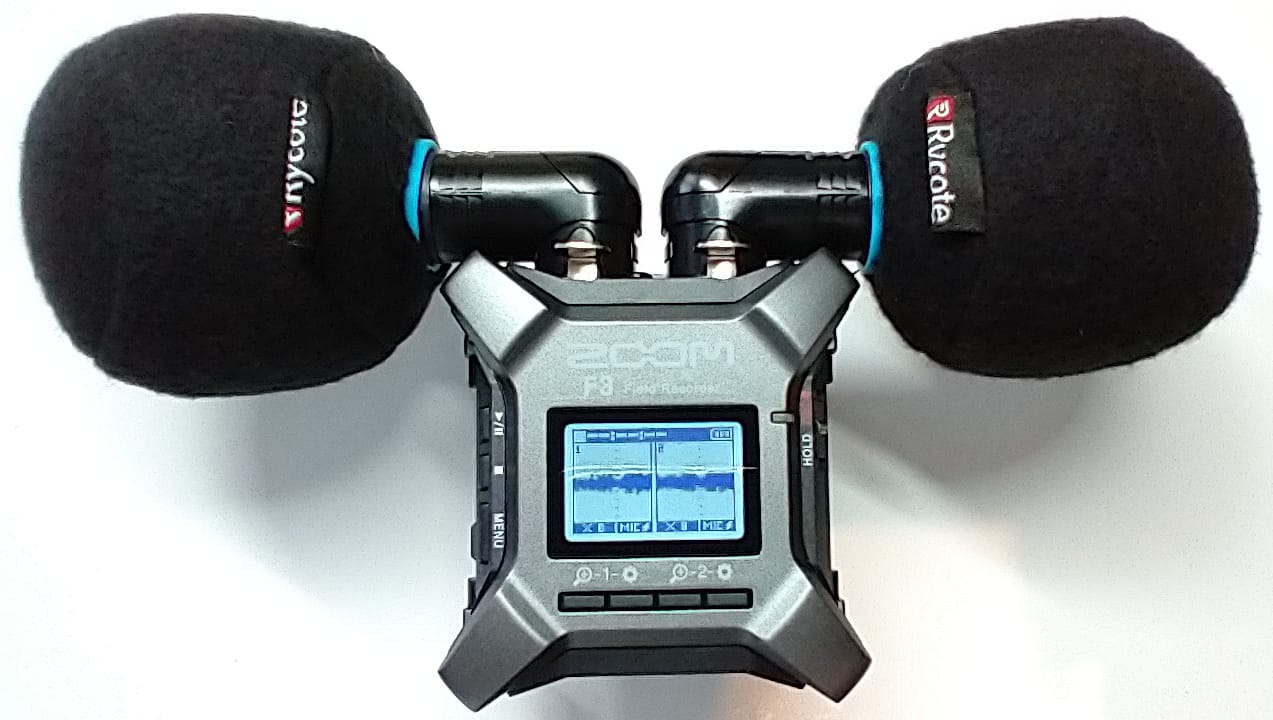

Wind protection, as listed below the Rycote Baseball with Windjammer is an excellent combination and brings -40dB of wind noise attenuation, across the spectrum.

Specifications:

Microphone Capsule: Primo EM272Z1
Acoustic Principle: Pressure operated
Directional Pattern: Omni directional

Frequency Range: 20 Hz to 20 kHz

Signal to Noise Ratio: 80 dB at 1 kHz
Self Noise: 14 dB-A

Clipping SPL: 119 dB SPL at 1 kHz
Sensitivity: -28 dB +/- 3dB at 1 kHz
 (0 dB = 1V/Pa)
Dynamic Range: 105 dB
-A
Output Impedance: 1.4 k ohms

Power Requirement: Phantom power, 12-48V

Current Consumption: 0.9 mA

Output Connector: XLR Male, Neutrik, gold plated pins

What’s included:

• A matched stereo pair (2) of Right Angle Pluggy EM272Z1 XLR Microphones


Accessories available (not included):

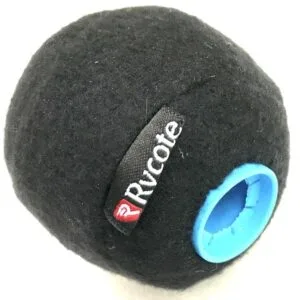

• Rycote Baseball Windshields

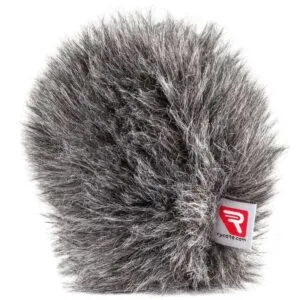

• Rycote Baseball Windjammers

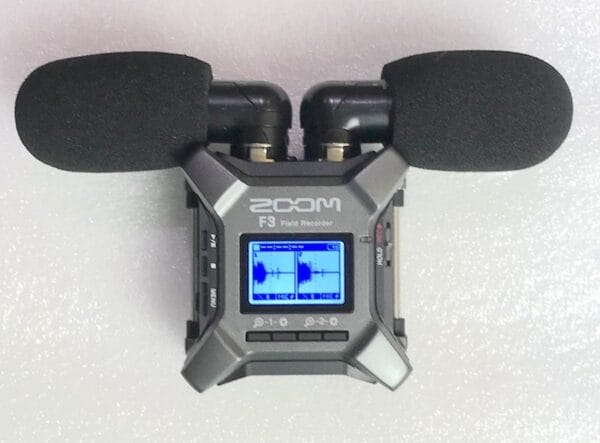

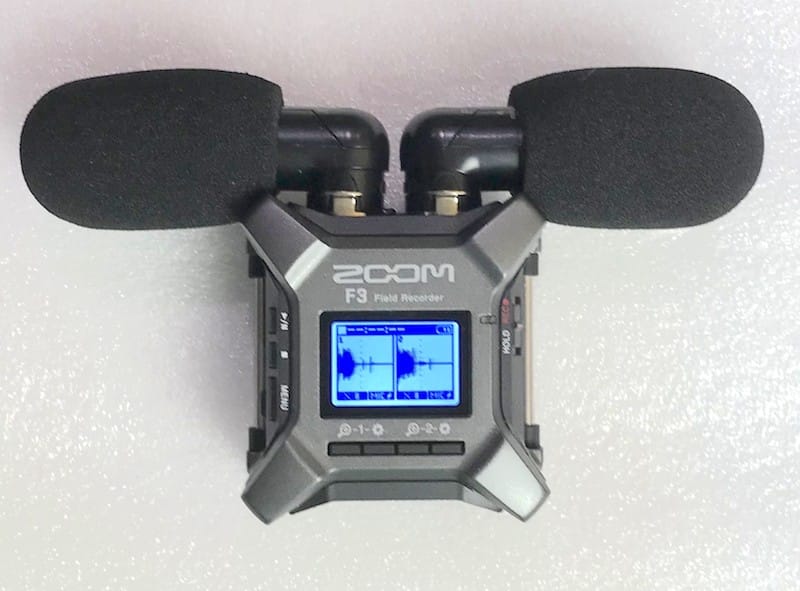

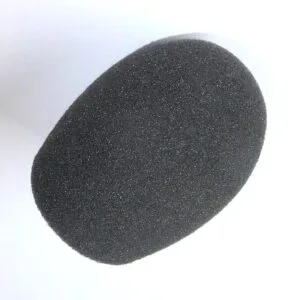

• Pluggy XLR Foam Windshield (single)
